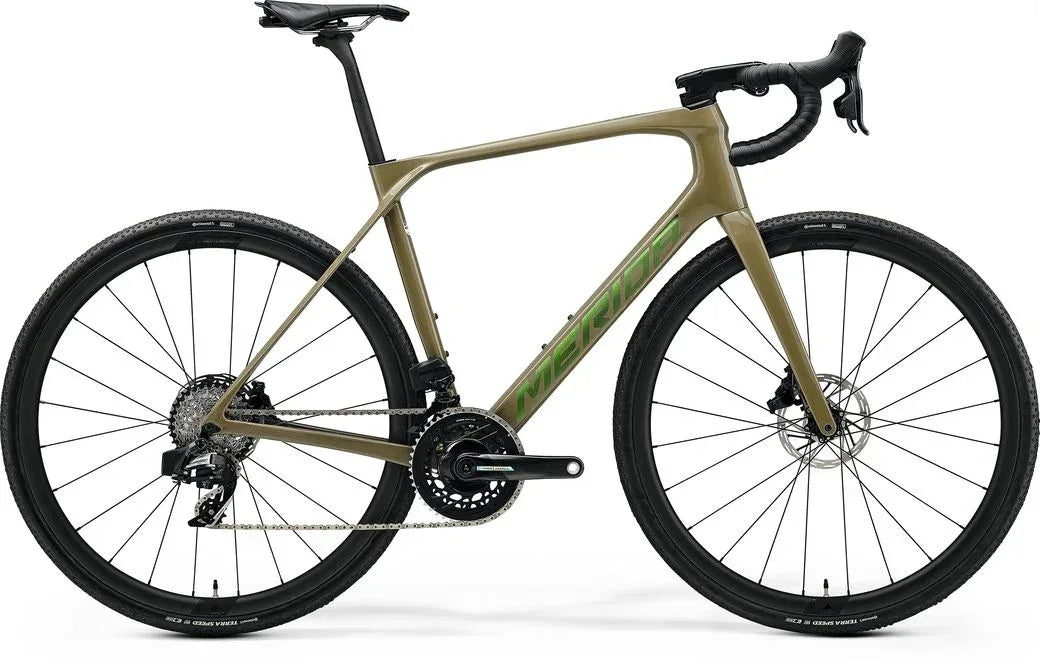

Merida Scultura Endurance GR

What if we told you there was a bike capable of linking paved climbs at group-ride pace and, one minute later, taking you onto a gravel track without missing a beat? Keep reading: in the following lines, you’ll discover why the Merida Scultura Endurance GR is redefining the concept of “fast gravel”.

Quick summary for the impatient

• Weights: 8.6 kg (GR 8000, CF3 II frame), 9.1 kg (GR 5000) and 10 kg (GR 500, Lite aluminium)
• Drivetrains: SRAM Force AXS D2 (2×12), Shimano GRX 820 (2×12) or GRX 400 (2×10), depending on the build
• Tyres: Continental Terra Speed 700×35 mm (stock)
• Clearance: up to 35 mm; focused on light gravel and rough tarmac
• Approx. RRP: €2,199–€4,699 (depending on version and current offer)

Who is the Scultura Endurance GR for?

Merida has taken its award-winning endurance platform and fine-tuned it for riders who prioritise speed over “monster-gravel” versatility. This is your bike if:

• You come from road cycling and want to try trails without losing that lightweight feel.
• You take part in gravel gran fondos or mixed-surface rides where every watt counts.
• You need a comfortable position (high stack) that is still responsive for sprinting or climbing.

CF3 II / Lite frame: 50% gravel–50% tarmac stiffness and comfort

The CF3 II carbon shares its mould with the road Scultura Endurance, but adds extra mounts, full-integration internal cable routing and a flared handlebar to keep the bike under control on twisty descents. The Lite aluminium in the GR 500 model retains the same geometry and carbon fork, offering an affordable entry point without adding too much weight.

Key geometry figures (size M)

• Head tube angle: 72–73° (stable without feeling like a “truck”)
• Seat tube angle: 73.5°–74° (good traction when climbing)
• Chainstays: 418 mm (agility in tight corners)
• Wheelbase: 1,137 mm in size M; a balance between stability and responsiveness

2025 builds and prices

*Average market prices in June 2025; they may vary depending on availability and local promotions.

Performance on the terrain

Climbs: the 1,124 g CF3 frame and bottom-bracket stiffness turn every crank stroke into real forward momentum, aided by low-rolling-resistance tires.

Descents and dirt roads: the handlebar with 12° flare, carbon fork, and 35 mm tires provide control without compromising aerodynamics.

Long distances: the high stack and the carbon’s vertical compliance reduce arm and neck fatigue, a detail that earned it comfort awards in the specialist press.

Advantages and areas for improvement

Highlights

• Road-bike weight with gravel-specific controls.
• “All-day” geometry ideal for rides of > 150 km.
• Very spread-out builds: from the entry-level GRX 400 to the top-of-the-range Force AXS.

Areas for improvement

• Clearance is limited to 35 mm: if your usual gravel terrain is loose or very rough, you may be looking for 40–45 mm.
• The GR 500 comes with somewhat heavy aluminum wheels; a future carbon tubeless upgrade would be a perfect fit.

Frequently asked questions

Can I fit 38 mm or larger tires?

No. Merida certifies clearance up to 35 mm, measured on a 22 mm internal rim; fitting anything larger voids the warranty and may cause rubbing.

Is it suitable for lightweight bikepacking?

Yes: it includes hidden mounts underneath the top tube and a fender mount, ideal for top-tube bags and extra bottle cages.

What size should I choose at 1.78 m?

Merida recommends size M (170–183 cm). If you prioritize a more upright position, L also fits thanks to its moderate top tube.

Conclusion

The Merida Scultura Endurance GR fills the gap between an endurance road bike and a pure gravel bike: lightweight, agile, and ready to compete in any gravel fondo without compromising your fast rides on asphalt. A “two-in-one” bike that minimizes excuses and maximizes adventures.
