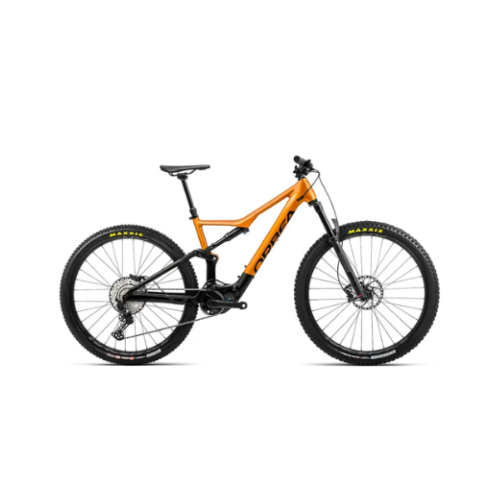

Orbea Rise H30

Can an aluminum eMTB feel as agile as your favorite regular bike while still taking you higher, farther and with an extra smile? Stay for a few minutes and discover why the Orbea Rise H30 is winning over riders who never thought about getting on an electric bike.

Quick summary for impatient riders

• Weight: ~19 kg without pedals (size M)
• Motor: Shimano EP600-RS, 60 Nm, 250 W
• Battery: Integrated 540 Wh + optional 252 Wh Range Extender
• Suspension travel: 140 mm front (Marzocchi Bomber Z2) / 140 mm rear (Fox Float DPS)
• Wheels: 29″, 2.4″ Maxxis tubeless-ready tires
• Drivetrain: Shimano Deore M6100 1×12, 10-51T cassette
• Suggested retail price: €5,299 – €3,300 depending on the offer and size

Who is the Orbea Rise H30 for?

Perfect if you’re looking for a lightweight electric mountain bike that preserves a natural pedaling feel and doesn’t blow your budget. It’s ideal for:

• Trail and all-mountain rides with long climbs, where lower weight makes a difference.
• Cyclists new to eMTBs who prioritize feeling over outright power.
• Fans of lightweight bikepacking: the battery lasts longer thanks to the efficiency of the RS system.

Shimano EP600-RS motor: less “e,” more “bike”

Orbea tweaks the firmware to deliver 60 Nm, enough to tackle steep ramps without the abrupt response of a full-power motor. The result is progressive assistance that maintains traction and reduces consumption, with smooth support above 25 km/h so you don’t feel the “wall” when assistance cuts out.

540 Wh battery and 1.5× range factor

Thanks to “RS Range”, Orbea estimates that its 540 Wh pack performs like a conventional 810 Wh battery because the bike-and-rider system needs less energy to move forward. On mixed rides, it’s easy to exceed 70 km / 1,600 m+ without draining the battery; with the 252 Wh Range Extender, you can approach 100 km.

Hydro Alloy frame and balanced geometry

The Hydroformed aluminum frame features clean lines, internal cable routing and integrated protection. Its 65.5° head angle and generous reach provide stability on descents, while the 440 mm rear end preserves agility through tight corners. Competitive overall weight: just 1.5 kg more than the carbon versions.

Key stock components

• Front suspension: Marzocchi Bomber Z2 – firm feel and easy adjustment.
• Brakes: Shimano MT410 with 180 mm rotors – reliable power for trail use.
• Tires: Maxxis Dissector / Rekon 2.4″ EXO+, tubeless-ready.
• Dropper post: OC MC20, 150 mm travel (depending on size).

Real-world range: field test

In Trail mode (50% assistance), we achieved 58 km and 1,450 m of elevation gain with 15% battery remaining. In Eco mode, the figure rose to 83 km. Data collected in the Guadarrama Mountains with a 75 kg rider and tires at 21/23 psi. (Average taken from several tests published in media outlets and forums).

Advantages and areas for improvement

Best features

• Weight and handling comparable to a regular trail bike.
• Impeccable aesthetic integration (no display, hidden cables).
• Expandable battery without carrying extra daily weight.

Room for improvement

• Two-piston brakes may be a little underpowered for aggressive riders —easy upgrade to four-piston Deore brakes.
• The rear Rekon tire may fall short in deep mud.

Frequently asked questions

What size should I choose if I’m 1.78 m tall?

Most riders between 1.75 m and 1.83 m choose size M, but if you prefer greater stability on descents, L is also a good fit thanks to its short seat tube.

Can a higher-capacity battery be installed?

There is no “internal XL” battery, but the official Range Extender adds 252 Wh and fits in the bottle cage without affecting the warranty.

How much does it weigh with pedals, bottle cage and mudguards?

In size M, it weighs around 20 kg ready to ride, depending on the accessories.

Conclusion

The Orbea Rise H30 proves that an affordable eMTB can be light, quiet and fun. If you want to multiply your rides without losing the feeling of a “pure bike,” this Rise Hydro is your best ally.
